I. Case of Wuhan mechanical garage - Hubei Provincial Department Of Water Resources Automatic Mechanical Garage
Project Name: Hubei Provincial Department Of Water Resources Automatic Mechanical Garage
Project address: No. 17, Zhongnan Road, Wuchang District, Wuhan
Equipment type: PCS vertical lifting mechanical parking equipment
II. Project background
The Hubei Provincial Department Of Water Resources Automatic Mechanical Garage aims to make full use of the existing site, improve the parking conditions and alleviate the parking difficulties of the department of water resources and the masses. The construction of the project can play a leading and exemplary role in the general and mechanical parking lot in Wuhan. In full accordance with the goal of building a high-quality project of "leading technology and first-class quality", the preliminary work of the mechanical garage construction in the office area will be fully completed in 2018, and will be completed and put into use in 2019, basically solving the problem of parking for cadres and employees. The construction of the project can play a leading and exemplary role in the popularization and mechanical parking lot in Wuhan; Carry out various convenient measures of the department of water resources to effectively improve work efficiency; At the same time, the construction and improvement of business office supporting parking facilities is of great significance to improve the regional emergency response capacity and management service level and build a harmonious society.
III. Introduction to PCS vertical lifting mechanical garage-large platform mechanical garage

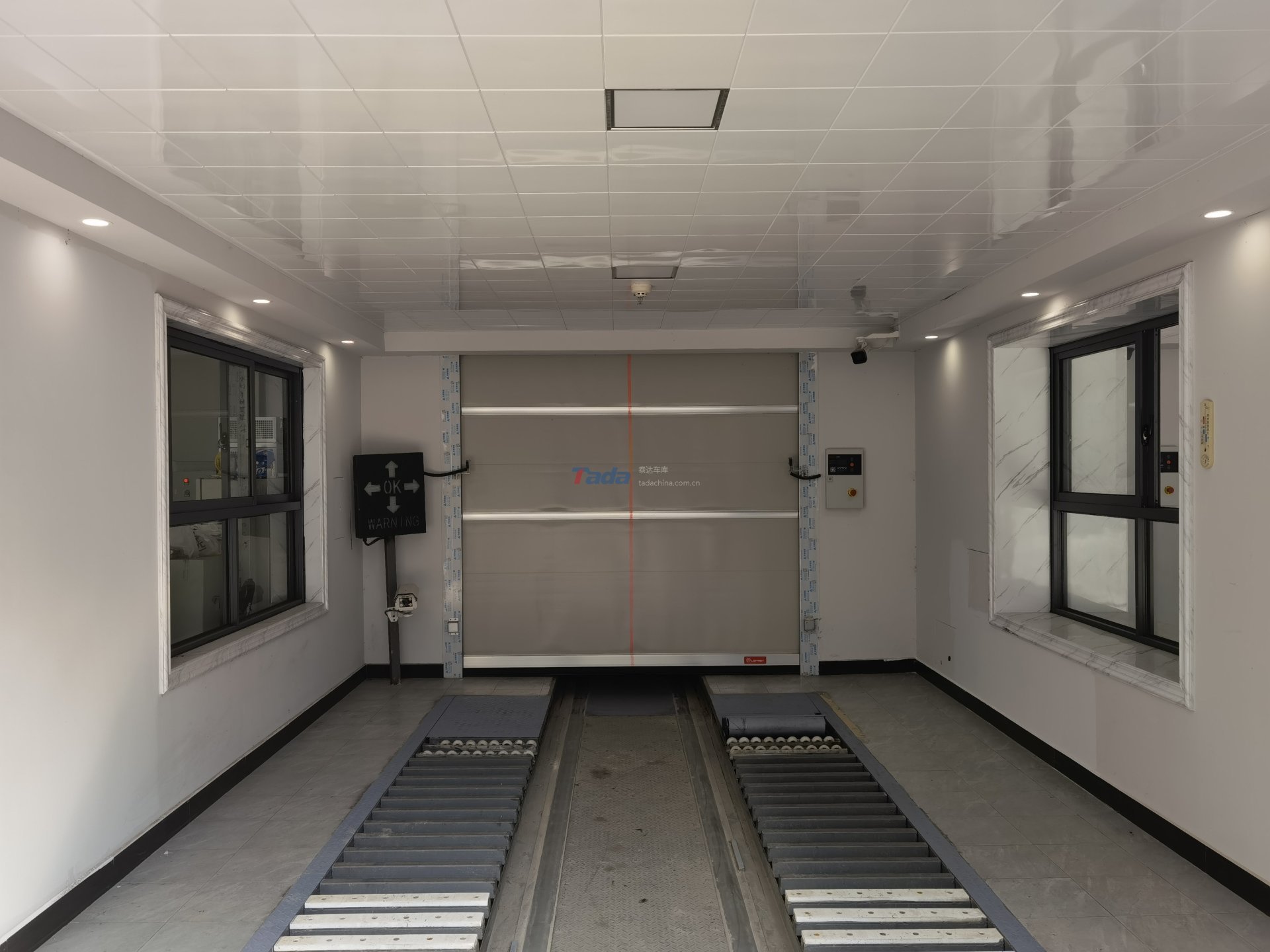

Entrance and Exit System of Automatic Mechanical Garage

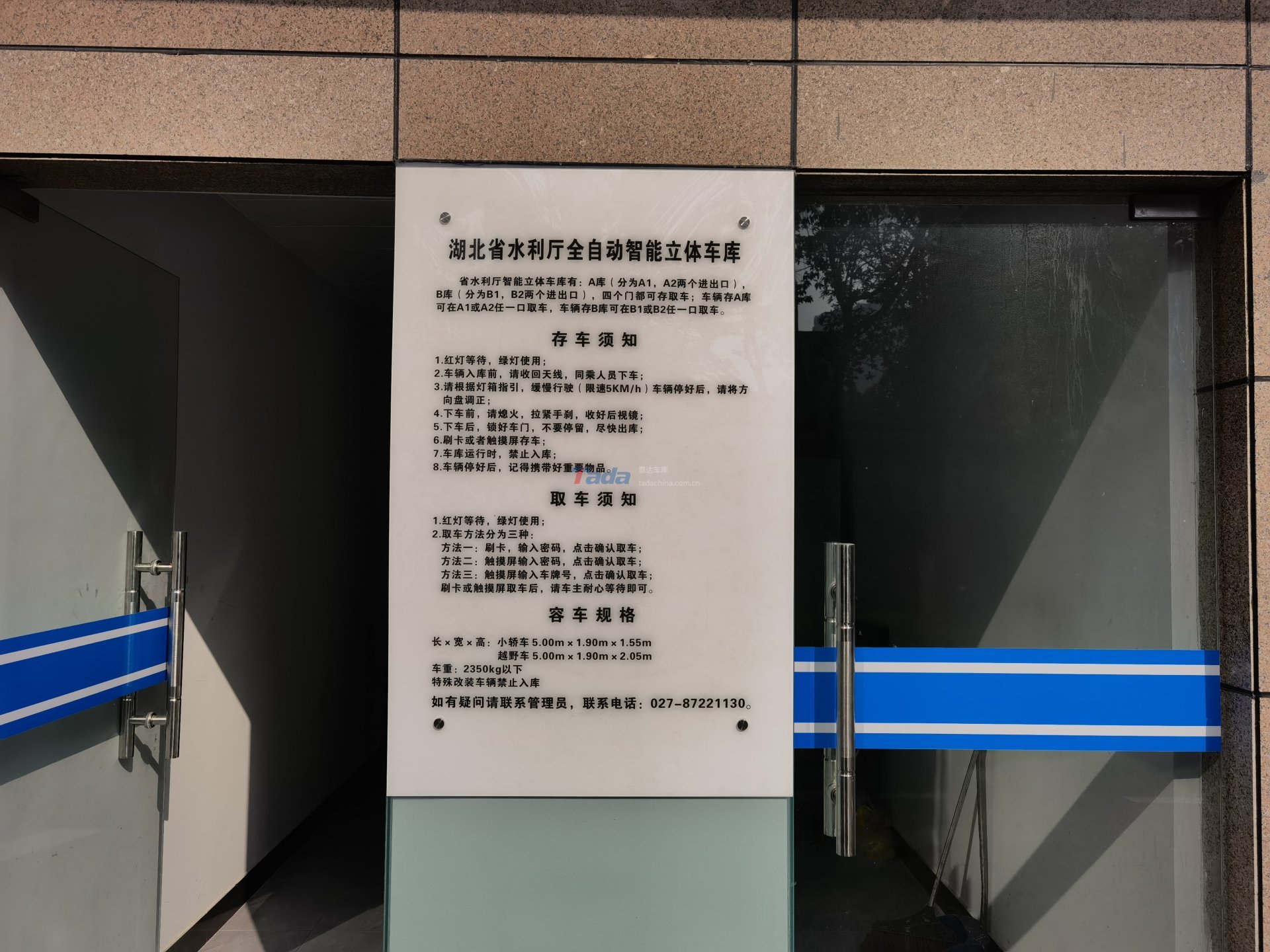

Parking Guidelines For Automatic Mechanical Garage

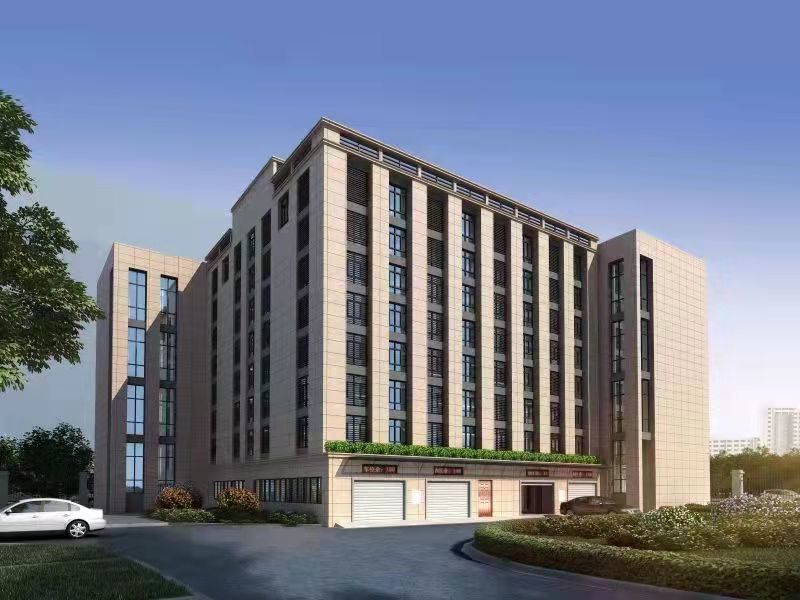

Hubei Provincial Department Of water Resources Automatic Mechanical Garage Interior
PCS is a new type of vertical lifting tower parking equipment. Its core vehicle exchange technology adopts our parkrobot comb exchange transporter, which can reduce the average access time of a single parking space and improve the access efficiency. It has automatic centering device and can rotate during operation. This type of mechanical garage adopts rectangular tower steel structure frame, straight in and straight out access mode, multiple entrances and multiple access channels. It is suitable to be built on the ground, underground, or above ground and underground combined full-automatic intelligent mechanical garage. It is suitable for large mechanical garage or parking lot.
IV. Operation principle of PCS vertical lifting mechanical garage-large platform mechanical garage
When storing the car, the car is parked on the platform at the entrance of the automated parking garage. The detection device at the entrance can detect the vehicle's length, width, height and other data to park the vehicle on parking levels of different heights. The comb-tooth parking robot moves under the vehicle and uses the comb-tooth misalignment and cross movement to extract the car to the carrier. It moves below the vehicle and moves the vehicle to a large platform that can be raised and lowered, and then parks the car on a specific parking space through a sliding movement action.
When picking up the car, the user swipes a card at the entrance or exit of the parking garage or makes an appointment through the APP, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of the storage rack, and uses a comb-tooth misalignment and crossover action to extract the car from the storage rack to the carrier. Then, the car is moved to a large platform that can be raised and lowered through a series of plane movements. Finally, the car is transported to the entrance and exit of the parking garage and the head of the car is turned to the exit direction, which is convenient for users to pick up the car.
V. Parameters of large platform PCS vertical lifting mechanical parking equipment
Specification and model: PCS50-1K rated lifting
Capacity: 2.35t
Number of floors: 9 floors, 6 berths on each floor
Rated speed: 90m / min
VI. About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
