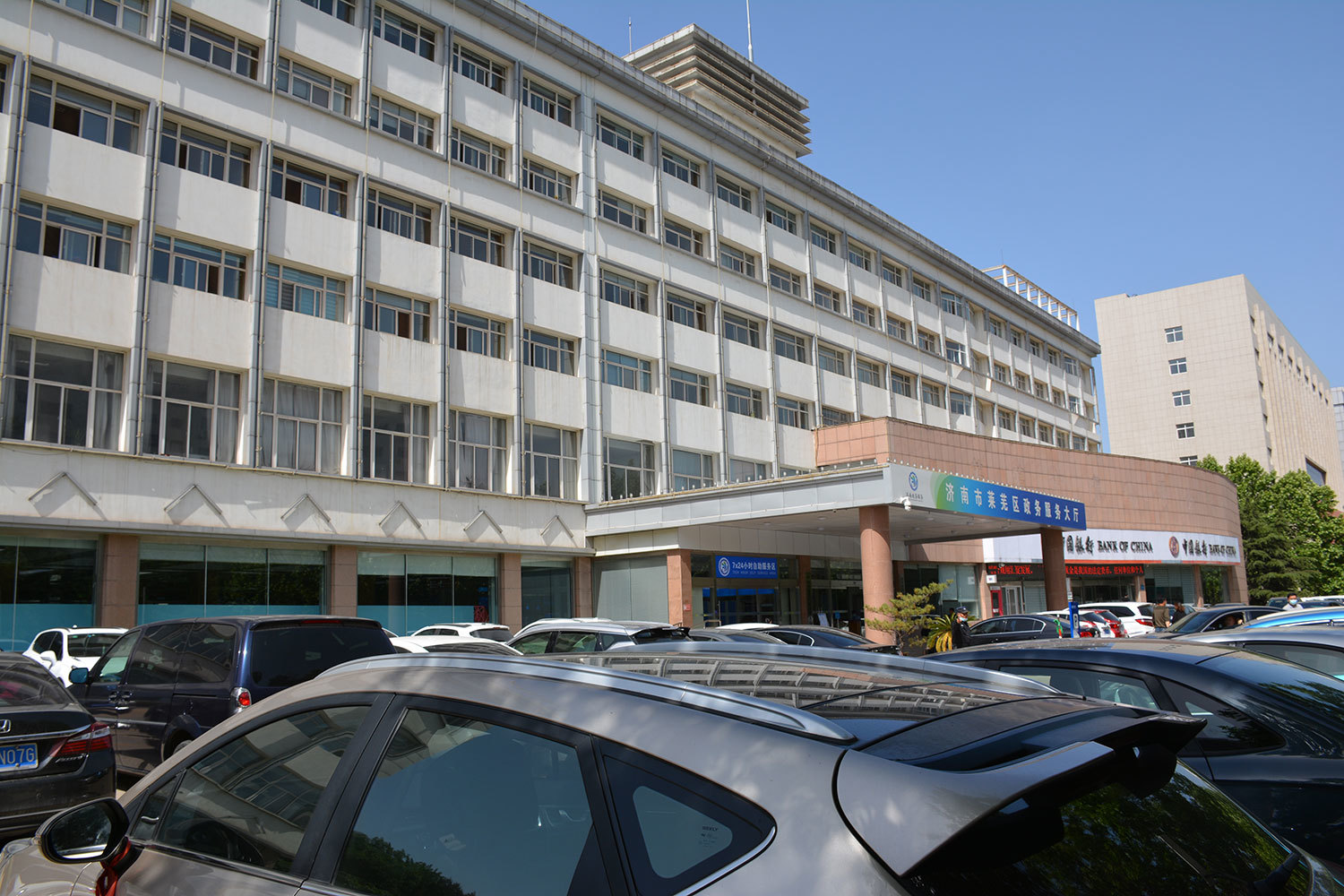

I. Laiwu District Government Service Center Mechanical Garage Display - Jinan mechanical garage case
Project Name: Jinan Laiwu district government service center mechanical garage
Project address: No. 1, Longtan East Street, Laiwu District, Jinan
Equipment type: PSH two-level puzzle parking mechanical garage/PSH three-level puzzle parking mechanical garage

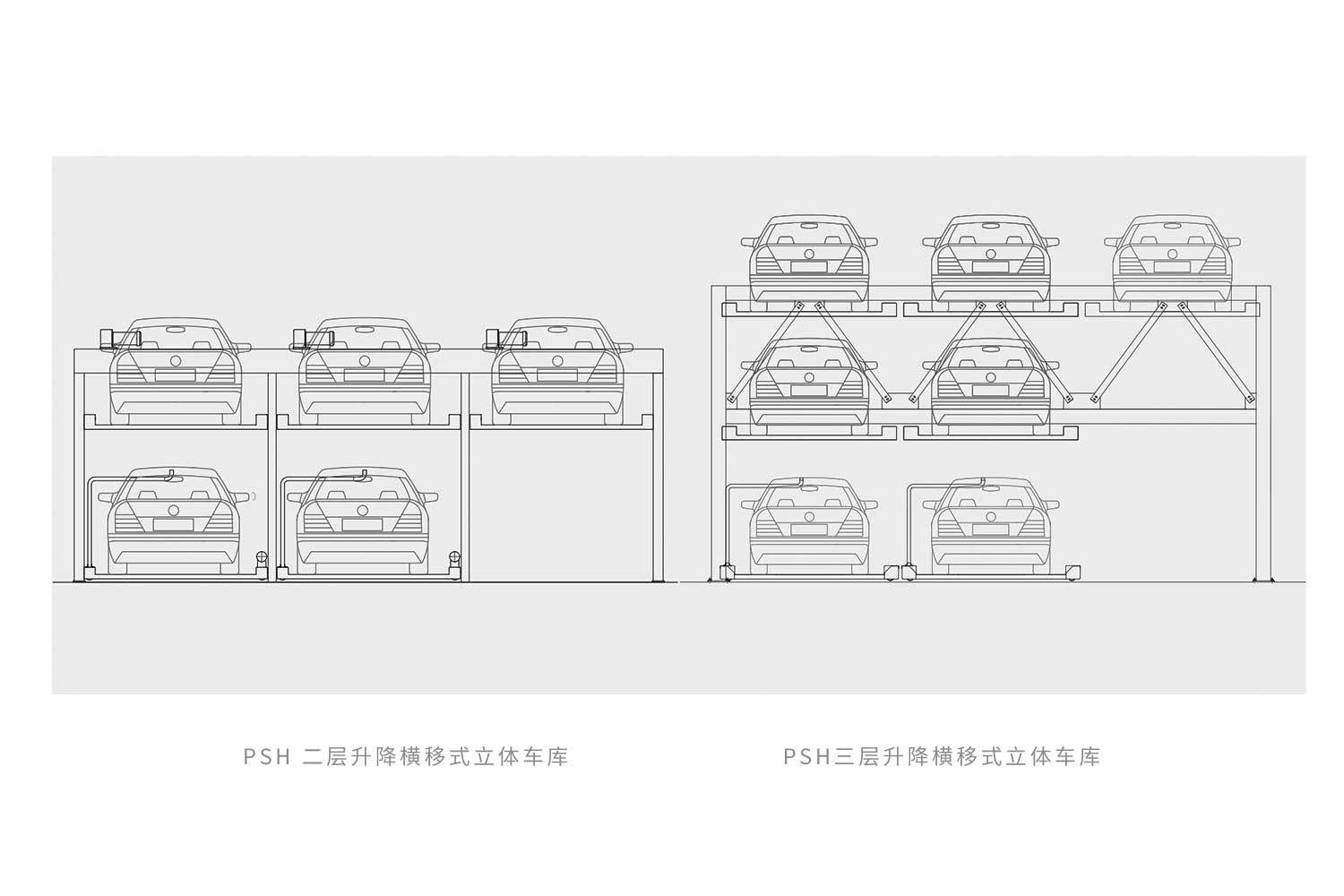

II. Schematic diagram of PSH two-level and three-level puzzle parking equipment
III. Operation principle of PSH two-level and three-level puzzle parking mechanical garage
PSH puzzle parking mechanical garage is suitable for adding parking spaces in new communities and reconstruction of old communities. Its operation principle is like a magic cube. It is an intelligent device for automobile mechanical storage through the lifting and transverse movement of the vehicle plate. The car carrier plate on the top layer is only used for lifting, the car carrier plate on the ground layer is only used for lateral movement, and the middle layer can realize lifting and lateral movement.
When storing a car, the user drives the car to a parking facility with a free parking space, selects the target mechanical parking space and enters a password or swipes the card. The parking space below the loading plate of the target parking space is laterally shifted to form a descending channel for the target parking space. The car board of the target parking space is lowered to the ground by the lifting system, and the safety door is automatically raised (if any). The user drives the car into the car board of the stereo garage by reversing. The reason for reversing and storing is based on international conventions for parking safety considerations. After the user parks the vehicle properly, he swipes the card again before leaving the car board and going to the control panel. At this time, the safety door is lowered automatically (if any). The parking system will automatically store the vehicle to the target parking space, and the entire storage process ends. The parking space on the ground floor of this type of mechanical parking equipment can be reversed into the mechanical garage after swiping a card.
When picking up the car, the user swipes the card or enters the password, and the parking space below the target parking space is laterally moved to form a passage for the target parking space to descend. The target parking space is lowered to the ground through the upgrade system, and the safety gate is automatically raised. The user drives the vehicle out of the mechanical garage and swipes the card here, the security door automatically lowers, and the entire process of taking the car is over.
IV. Features and application scope of PSH type mechanical garage
Main features:
Flexible setting and high space utilization; It is highly intelligent and controlled by PLC; Green environmental protection, energy saving, low noise and low power consumption; Various operation modes, convenient operation; Humanized design, convenient and fast installation.
The PSH puzzle parking equipment adopted by the government service center of Laiwu District, Jinan has the characteristics of many combination forms, strong adaptability to the site, low requirements for civil engineering, arbitrary combination and arrangement according to the terrain and space, fast access to vehicles, convenient use and maintenance and low cost. It can be built in the open air, in the basement, on the ground and underground of buildings.
According to the design regulations of mechanical parking garage (DBJ80-60-97), the width of the main passage of the garage is required to be ≥ 6m, and the traffic flow organization is required to be smooth.
According to GB 50067-97, each parking garage must be equipped with fire-fighting equipment. It is recommended to adopt pipeline type automatic forest spraying fire fighting system for fire fighting equipment, and the fire sprinkler must be set above the parking space.
The power of lifting and traverse equipment traverse motor is 0.1kw, and the lifting motor is 2.2kw. Only one motor acts during movement. The average power consumption of a parking space is about 0.2 degrees a day, and the use cost is very low. (calculated according to the number of vehicles entering and leaving each upper parking space three times a day).
V. About Us

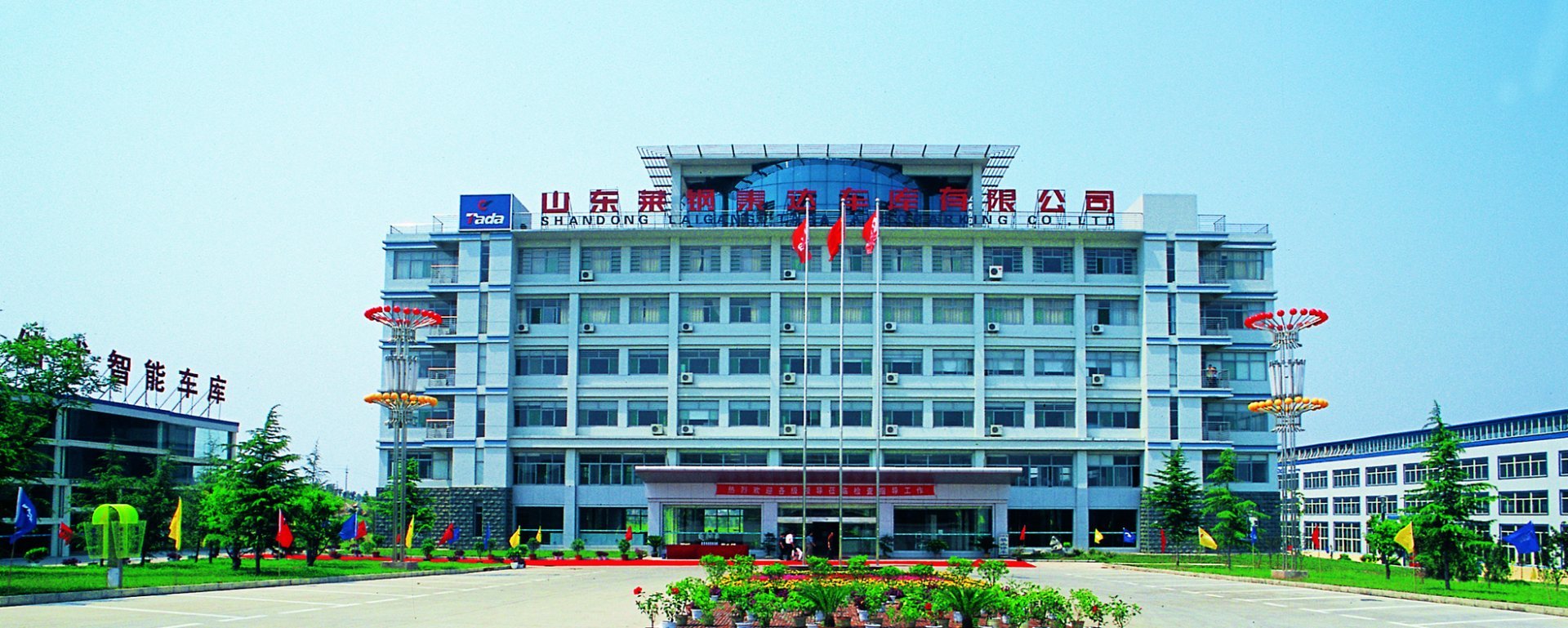

Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
