Features
TADA PCS large platform vertical lifting tower parking system adopts no-plate transfer technology. It has an automatic centering device that can be rotated during operation. This model of automated parking system adopts a rectangular tower steel structure frame, straight-in , and straight-out access methods, multiple entrances and multiple access channels, the use of a mobile APP to reserve the car, and a unique PLC + SERVER architecture management system. It is suitable for being built on the ground, underground, or above-ground and underground combined full-automatic intelligent parking system, and it is suitable for large parking garage or parking lots.
Composition
PCS large platform vertical lifting tower parking system is mainly composed of steel structure, large platform lift, car carrier (parking robot), car storage rack, entrance and exit system, detection device, safety device, intelligent variable frequency control system, monitoring and parking charge management system.
How Does It Work

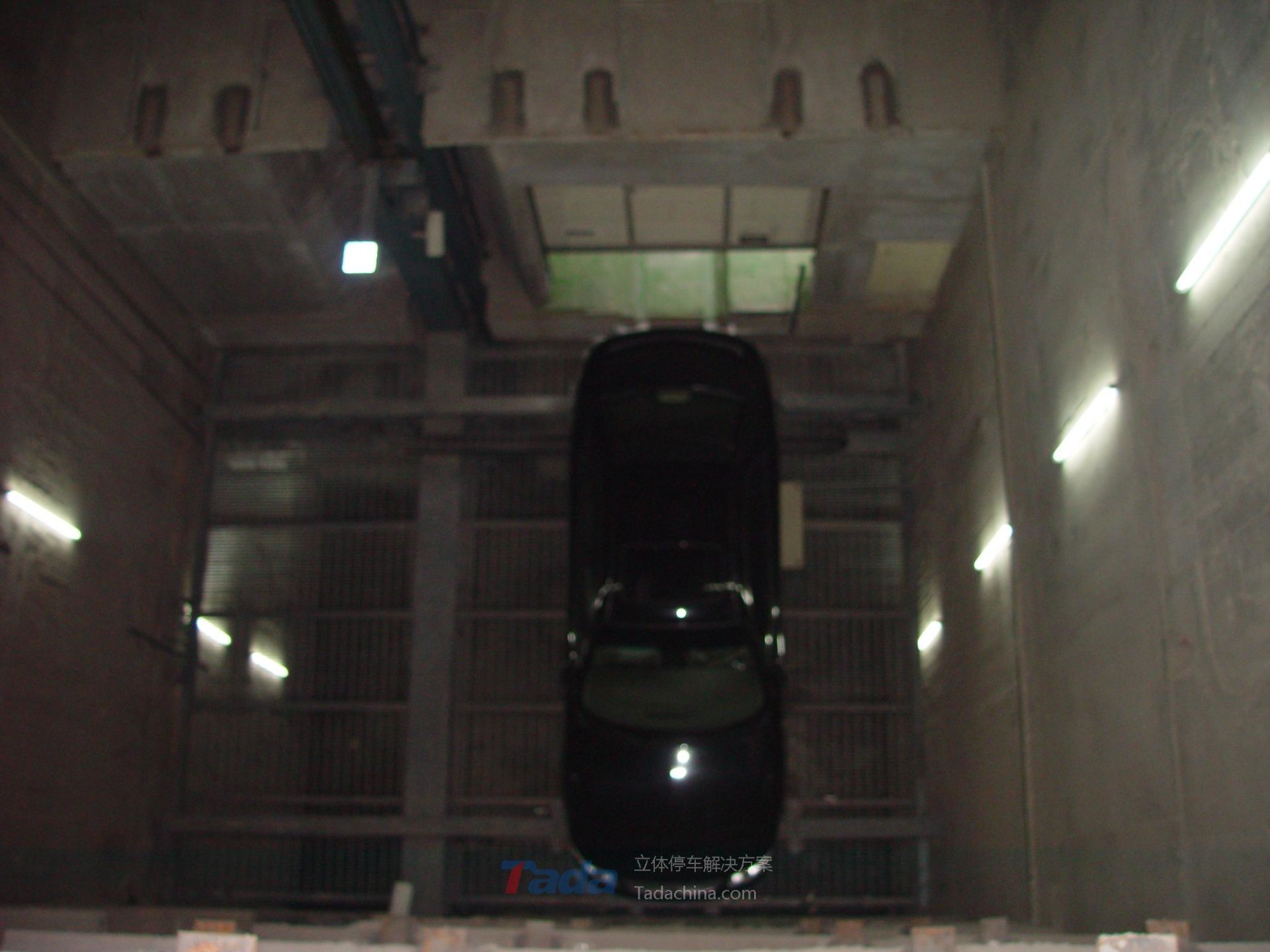

When storing the car, the car is parked on the platform at the entrance of the automated parking garage. The detection device at the entrance can detect the vehicle's length, width, height and other data to park the vehicle on parking levels of different heights. The comb-tooth parking robot moves under the vehicle and uses the comb-tooth misalignment and cross movement to extract the car to the carrier. It moves below the vehicle and moves the vehicle to a large platform that can be raised and lowered, and then parks the car on a specific parking space through a sliding movement action.
When picking up the car, the user swipes a card at the entrance or exit of the parking garage or makes an appointment through the APP, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of the storage rack, and uses a comb-tooth misalignment and crossover action to extract the car from the storage rack to the carrier. Then, the car is moved to a large platform that can be raised and lowered through a series of plane movements. Finally, the car is transported to the entrance and exit of the parking garage and the head of the car is turned to the exit direction, which is convenient for users to pick up the car.
Parameters
Project Case
|
|
|
|

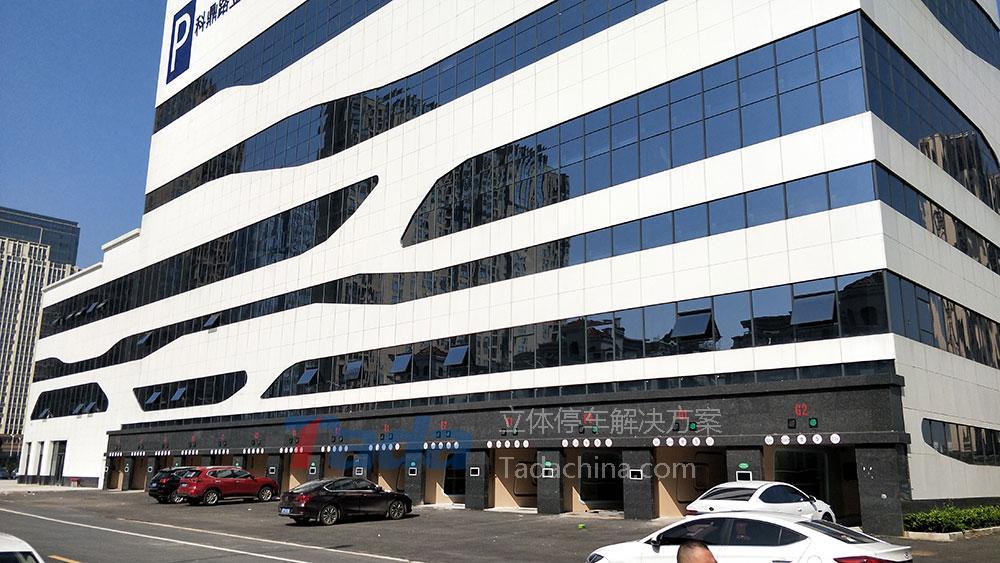

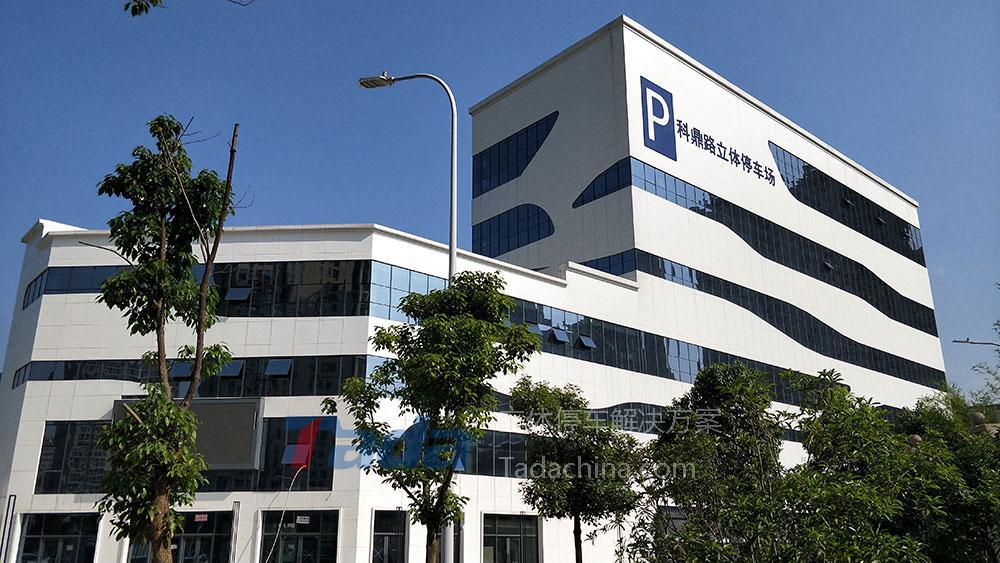

PCS Large Platform Vertical Lifting Mechanical Parking System in Keding Road, Nanchang |
Ginza Mall PCS Large Platform Vertical Lifting Mechanical Parking System |
Why Choose Us
About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
Service Process
Contact
Contact Us
Download
Technical parameters of PCS Large platform type (click to download)
