Feature
Features
The core technology of TADA's PCS model circular vertical lift-type automated parking garage adopts no-pallet transfer technology. The cylindrical automated parking system makes full use of limited space, has a high parking density, is safe, reliable, has a high degree of automation, and has a high efficiency of storing and receiving vehicles. It has an automatic centering device that can be rotated during operation. It is suitable for being built on the ground, underground, or above-ground and underground combined full-automatic intelligent parking garage, and it is suitable for large-scale parking garage or parking lot.
The above-ground round tower full-automatic parking garage can adopt a round tower steel structure frame and a 360-degree circular storage car, taking into account the advantages of fast installation, high-density car storage, and high efficiency. At the same time, the system is closely integrated with the architectural design, the appearance is beautiful, and the shape is beautiful, and it will become a beautiful landscape in the city.
Composition
PCS circular vertical lifting tower mechanical parking system is mainly composed of steel structure, lifting rotary platform, car carrier (parking robot), car storage rack, entrance and exit system, detection device, safety device, intelligent variable frequency control system, monitoring and parking charge management System composition.
How Does It Work
When storing the car, the car is parked on the platform at the entrance of the automated parking garage. The detection device at the entrance can detect the vehicle's length, width, height and other data to park the vehicle on parking levels of different heights. The comb-tooth parking robot moves under the vehicle and uses the comb-tooth misalignment and cross movement to extract the car to the carrier. It moves below the vehicle and moves the vehicle to a rotating platform that can be raised and lowered, and then parks the car on a specific parking space through a planar movement action.When picking up the car, the user swipes a card at the entrance or exit of the parking lot or makes an appointment through the APP, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of the storage rack, and uses a comb-tooth misalignment and crossover action to extract the car from the storage rack to the carrier. Then, the car is moved to a rotating platform that can be raised and lowered through a series of plane movements. Finally, the car is transported to the entrance and exit of the parking lot and the head of the car is turned to the exit direction, which is convenient for users to pick up the car.
E
Parameters
Case Show
Project Case
|
|
|
|

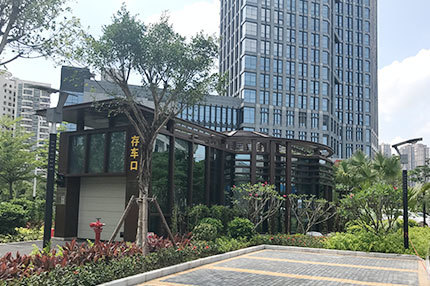

Xiamen Haicang Administrative Center Underground Circular Vertical Lifting Mechanical Parking System |

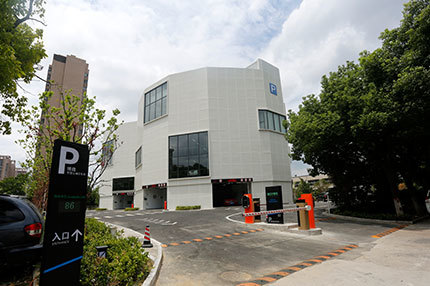

Hefei Zhongdian Branch No. 38 Ground Round Vertical Lifting Mechanical Parking System |
Why Choose Us
About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
Service Process
Downloads
Technical parameters of PCS round vertical lifting parking system (click to download)
