Features
Tada standard vertical lifting mechanical parking system generally takes two parking spaces as a level, and can be built up to 25 floors. The capacity of the vehicle is about 50 units and the height is about 50 meters. It has the smallest footprint, the highest land utilization, low vibration and low noise. This type is suitable for high-rise office buildings, residences, hospitals, comprehensive commercial buildings and other land-intensive projects, new independent mechanical garages, and old city reconstruction.
Composition
PCS standard vertical lifting tower mechanical parking system adopts plate exchange type car exchange technology, which is mainly composed of steel structure, car board, car vertical elevator, access exchange device (friction wheel drive), entrance and exit detection system and automatic door , Intelligent frequency conversion control system, monitoring and parking charge management system.
How Does It Work
When storing the car, the car is parked on the car board at the entrance and exit of the mechanical parking lot. The detection device at the entrance can detect the vehicle's length, width, height and other data to park the vehicle on parking levels of different heights. After the vehicle is tested, the car-type lifting mechanism lifts the car and the car board vertically to the designated floor. Then the traverse mechanism with friction wheels installed on the car sends the vehicle and the car board into the designated storage space.
When picking up the car, the user swipes a card at the entrance or exit of the parking lot or makes an appointment through the APP, and the system sends instructions to the PLC. The car-type lifting mechanism is lifted to the designated parking level, and then the traverse mechanism with friction wheels installed on the car moves the car board and the car from the designated parking space into the car. Finally, the vehicle is transported to the entrance and exit of the parking lot and the head of the car is turned to the exit direction, which is convenient for users to pick up the car.

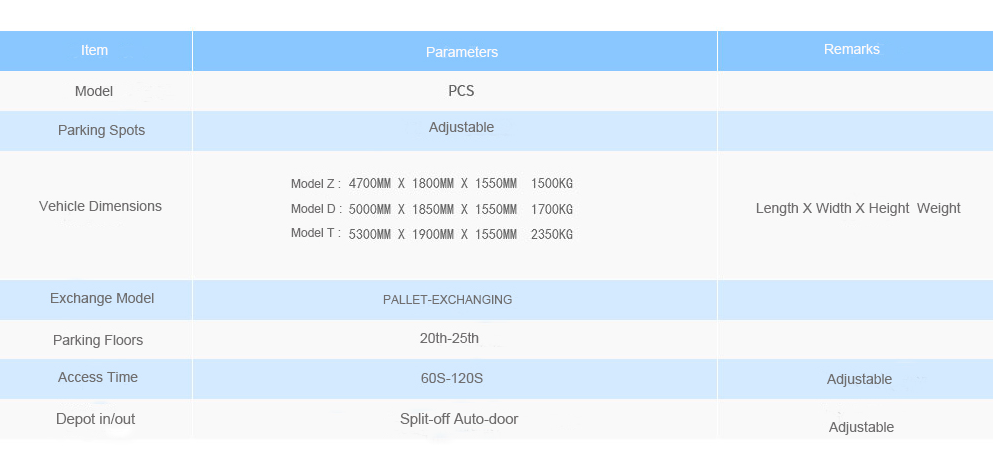

Parameters
Project Case
|
|
|
|

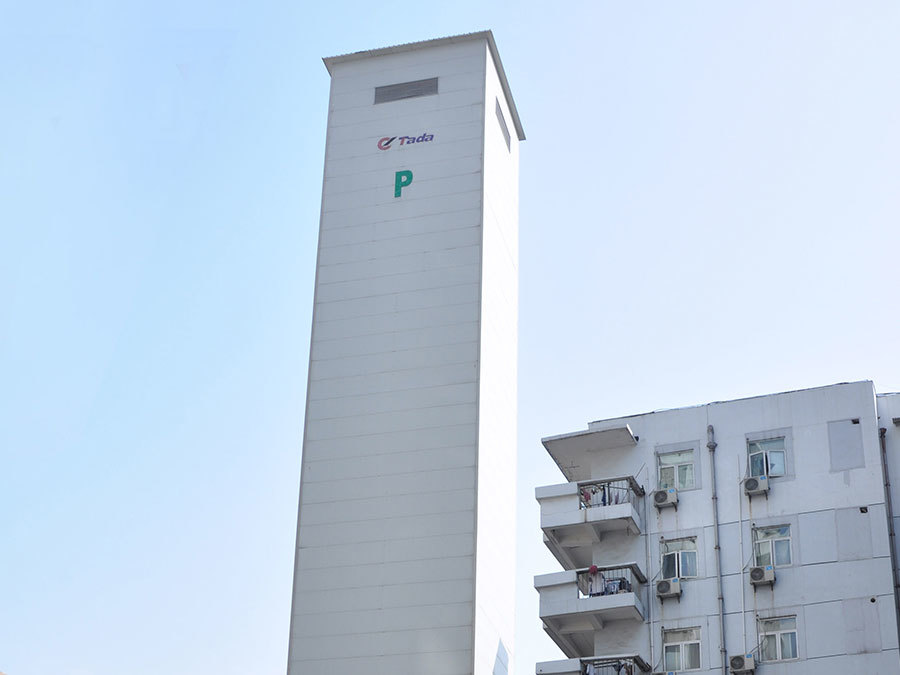

Wuhan Asia Hotel Standard Vertical Lifting Mechanical Parking System (Outer Tower) |
|
Why Choose Us
About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
Service Process
Download
Technical parameters of PCS Standard Vertical lifting parking system (click to download)
