Features
Puzzle Parking mechanical parking system is currently the most widely used stereo parking solution on the market, and it is also one of the types of stereo garage with the highest market share in China.

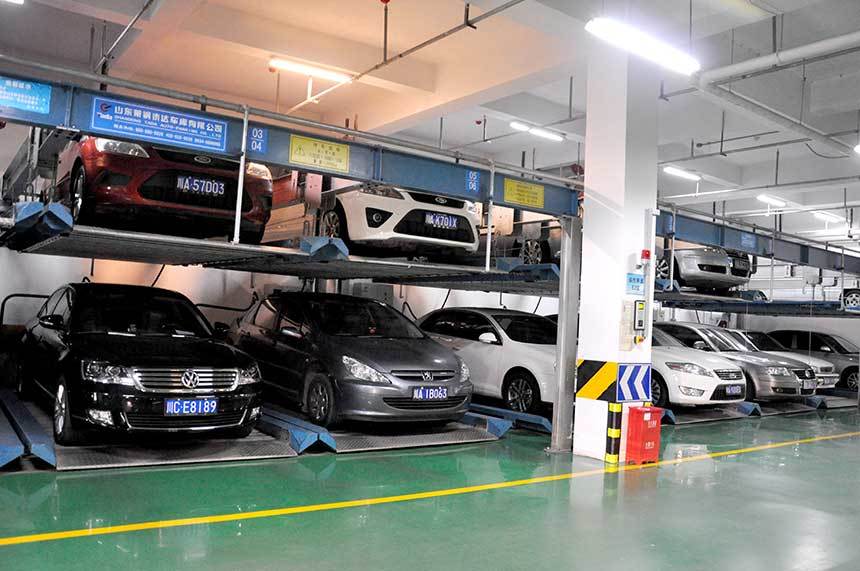

The PSH 2-story Puzzle Parking mechanical garage parking equipment adopts a motor-driven steel wire rope or chain lifting method. It can build a two-story mechanical parking garage, which can be built on the ground or in the basement. Up to eight floors can be designed on the ground, and the entrance is on the ground floor, with a large span design, which is very suitable for the basement of green squares, residential buildings, and office buildings. Compared with the same type of equipment, the full use of the underground part is a comparison of space utilization. A kind of equipment.
The PSH 2 level Puzzle Parking equipment is a parking solution that uses a car board to lift or pan to realize access to vehicles. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrains and spaces, high space utilization, safe and reliable equipment, fast access to vehicles, easy use and maintenance. Therefore, it is a multi-level three-dimensional parking solution with a small footprint and low construction cost.
The PSH2 level Puzzle Parking mechanical parking system can build 5 mechanical parking spaces on the space of 3 flat parking spaces, which is a parking solution suitable for the reconstruction of old communities.
Composition
The PSH 2 level Puzzle Parking mechanical parking system is mainly composed of a steel structure part, a car board, a lifting system, a traverse system, a transmission part, a safety protection system and a PLC automatic control system.
How Does It Work
The PSH 2-story Puzzle Parking mechanical parking system is suitable for increasing parking spaces in new and old communities. Its operation principle is like the Rubik's cube, and the intelligent device for realizing three-dimensional storage of the car is realized through the lifting and lateral movement of the car board. The top-level car board is only used for lifting, the ground-level car board is only used for lateral movement.
When storing a car, the user drives the car to a parking facility with a free parking space, selects the target mechanical parking space and enters a password or swipes the card. The parking space below the loading plate of the target parking space is laterally shifted to form a descending channel for the target parking space. The car board of the target parking space is lowered to the ground by the lifting system, and the safety door is automatically raised (if any). The user drives the car into the car board of the mechanical garage by reversing. The reason for reversing and storing is based on international conventions for parking safety considerations. After the user parks the vehicle properly, he swipes the card again before leaving the car board and going to the control panel. At this time, the safety door is lowered automatically (if any). The parking system will automatically store the vehicle to the target parking space, and the entire storage process ends. The parking space on the ground floor of this type of mechanical parking equipment can be reversed into the mechanical garage after swiping a card.
When picking up the car, the user swipes the card or enters the password, and the parking space below the target parking space is laterally moved to form a passage for the target parking space to descend. The target parking space is lowered to the ground through the upgrade system, and the safety gate is automatically raised. The user drives the vehicle out of the mechanical garage and swipes the card here, the security door automatically lowers, and the entire process of taking the car is over.
Parameters
Project Case
Why Choose Us
About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
Service Process
Download
Technical parameters of PSH two-story puzzle parking system (click to download)
