Features
Puzzle Parking mechanical parking system is currently the most widely used mechanical parking solution on the market, and it is also one of the types of mechanical parking system with the highest market share in China.

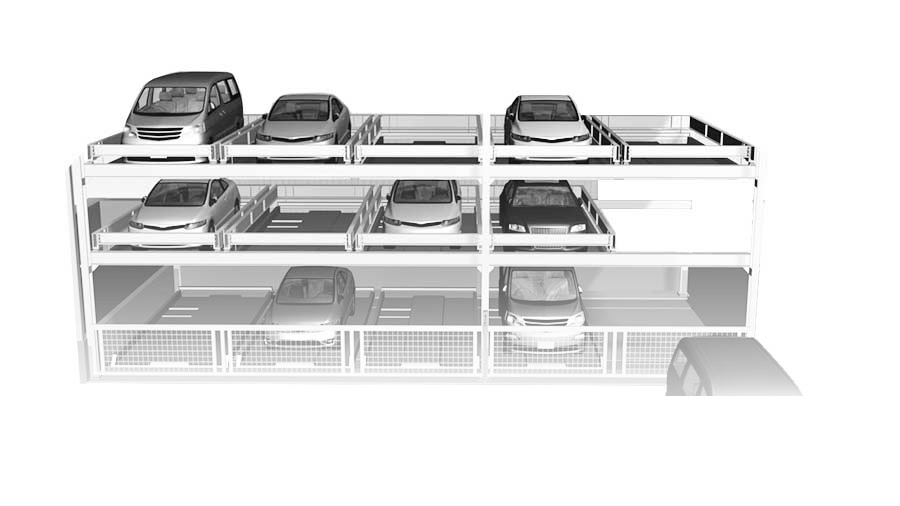

The PSH 3-story Puzzle Parking mechanical parking equipment mainly adopts a motor-driven wire rope lifting method. A three-story mechanical parking garage can be constructed, which can be built on the ground or in the basement. Up to eight floors can be designed on the ground, and the entrance is on the ground floor, with a large span design, which is very suitable for the basement of green squares, residential buildings, and office buildings. Compared with the same type of equipment, the full use of the underground part is a comparison of space utilization. A kind of equipment.
The PSH 3 level Puzzle Parking equipment is a parking solution that uses the car board to lift or pan to realize access to vehicles. Its scale can be large or small, can be arbitrarily combined and arranged according to different terrains and spaces, high space utilization, safe and reliable equipment, fast access to vehicles, easy use and maintenance. Therefore, it is a multi-level mechanical parking solution with a small footprint and low construction cost.
The PSH 3-story Puzzle Parking mechanical garage can build 7 mechanical parking spaces on the space of 3 flat parking spaces, which is a stereo parking solution suitable for the reconstruction of old communities.
Composition
The PSH 3 level Puzzle Parking mechanical garage is mainly composed of steel structure part, top frame, traverse frame, car board, lifting system, traverse system, transmission part, safety protection system and PLC automatic control system.
How Does It Work

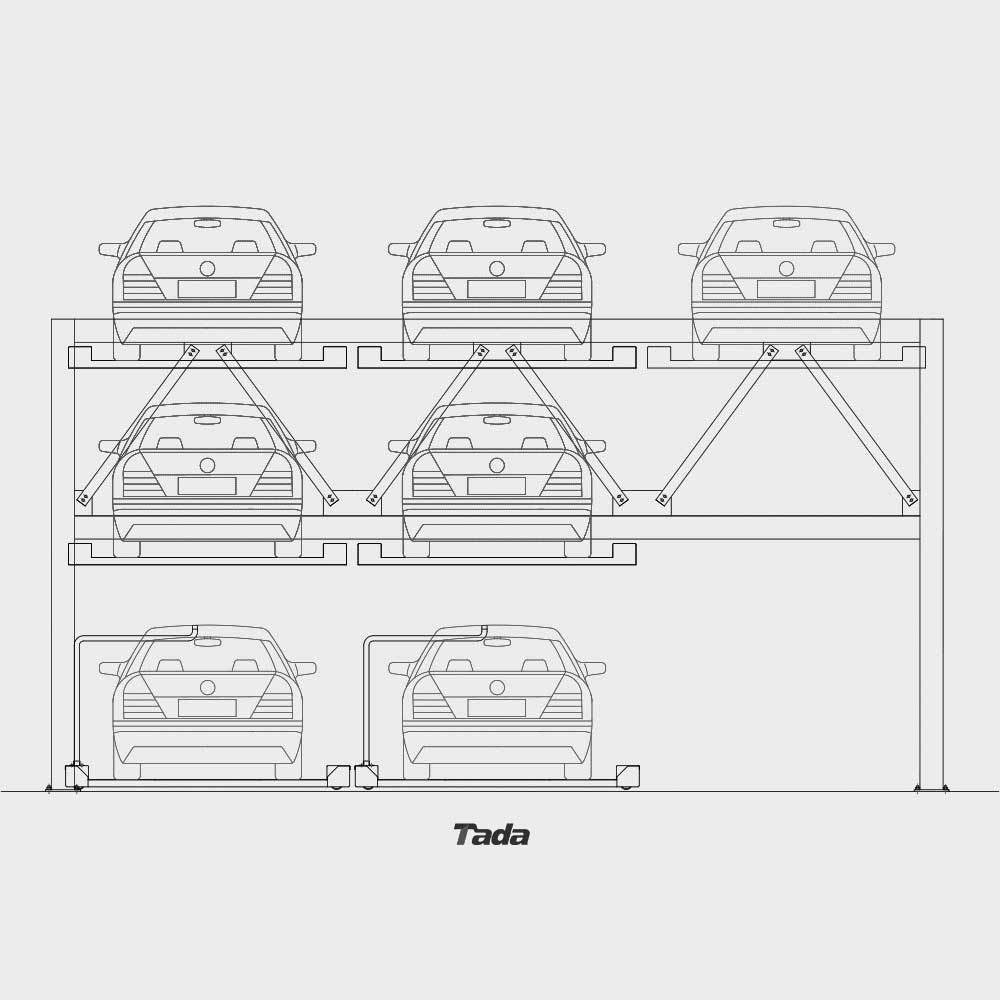

The PSH 3 level Puzzle Parking mechanical garage can realize the diversion of people and vehicles, which is suitable for increasing parking spaces in newly built communities and old districts. Its operation principle is like the Rubik's cube, and the intelligent device for realizing mechanical storage of the car is realized through the lifting and lateral movement of the car board. The top car board is only used for lifting, the ground car board is only used for horizontal movement, and the middle two layers can be moved up and down.
When storing a car, the user drives the car to a parking facility with a free parking space, selects the target mechanical parking space and enters a password or swipes the card. The parking space below the loading plate of the target parking space is laterally shifted to form a descending channel for the target parking space. The car board of the target parking space is lowered to the ground by the lifting system, and the safety door is automatically raised (if any). The user drives the car into the car board of the stereo garage by reversing. The reason for reversing and storing is based on international conventions for parking safety considerations. After the user parks the vehicle properly, he swipes the card again before leaving the car board and going to the control panel. At this time, the safety door is lowered automatically (if any). The parking system will automatically store the vehicle to the target parking space, and the entire storage process ends.
When picking up the car, the user swipes the card or enters the password, and the parking space below the target parking space is laterally moved to form a passage for the target parking space to descend. The target parking space is lowered to the ground through the upgrade system, and the safety gate is automatically raised. The user drives the vehicle out of the mechanical garage and swipes the card here, the security door automatically lowers, and the entire process of taking the car is over.
Parameters
Project Case
|
|
|
|

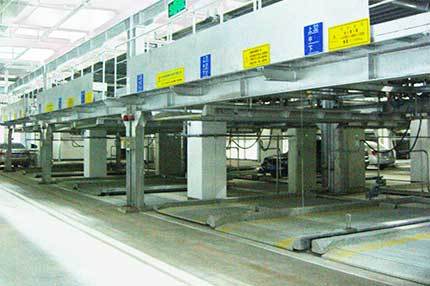

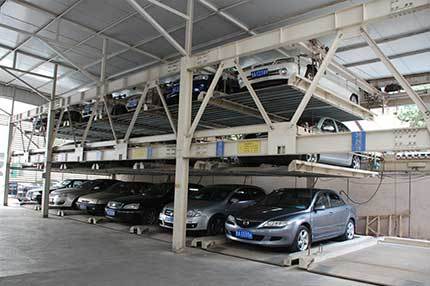

3-level Puzzle Parking Project of Labor and Social Security Department of Shandong Province |

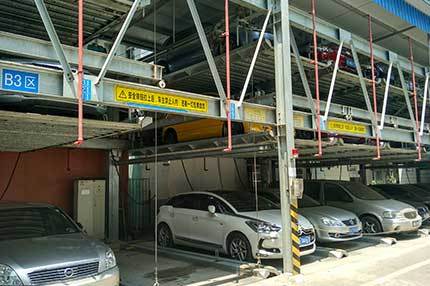

Guangzhou Zhongshan Third Hospital 3-level Puzzle Parking Project |
|
|
|
|
|
|
