Features
Tada PXD Trans Elevator parking equipment adopts PARKROBT parking robot carrier "manipulator" without platform transfer technology, low floor height requirements, high technical content and high degree of intelligence. It has an automatic centering device, which is safe, reliable, highly automated, and efficient for storing and receiving vehicles. Depending on the site, it can be installed outdoors (generally closed), indoor, above ground or underground. At the same time, the device also requires a relatively independent storage space without interference from other devices. A roadway stacker and a carrier are more suitable for vehicles between 50 and 100. According to the specific use area of different garages, it is usually appropriate to choose about five floors.
Composition

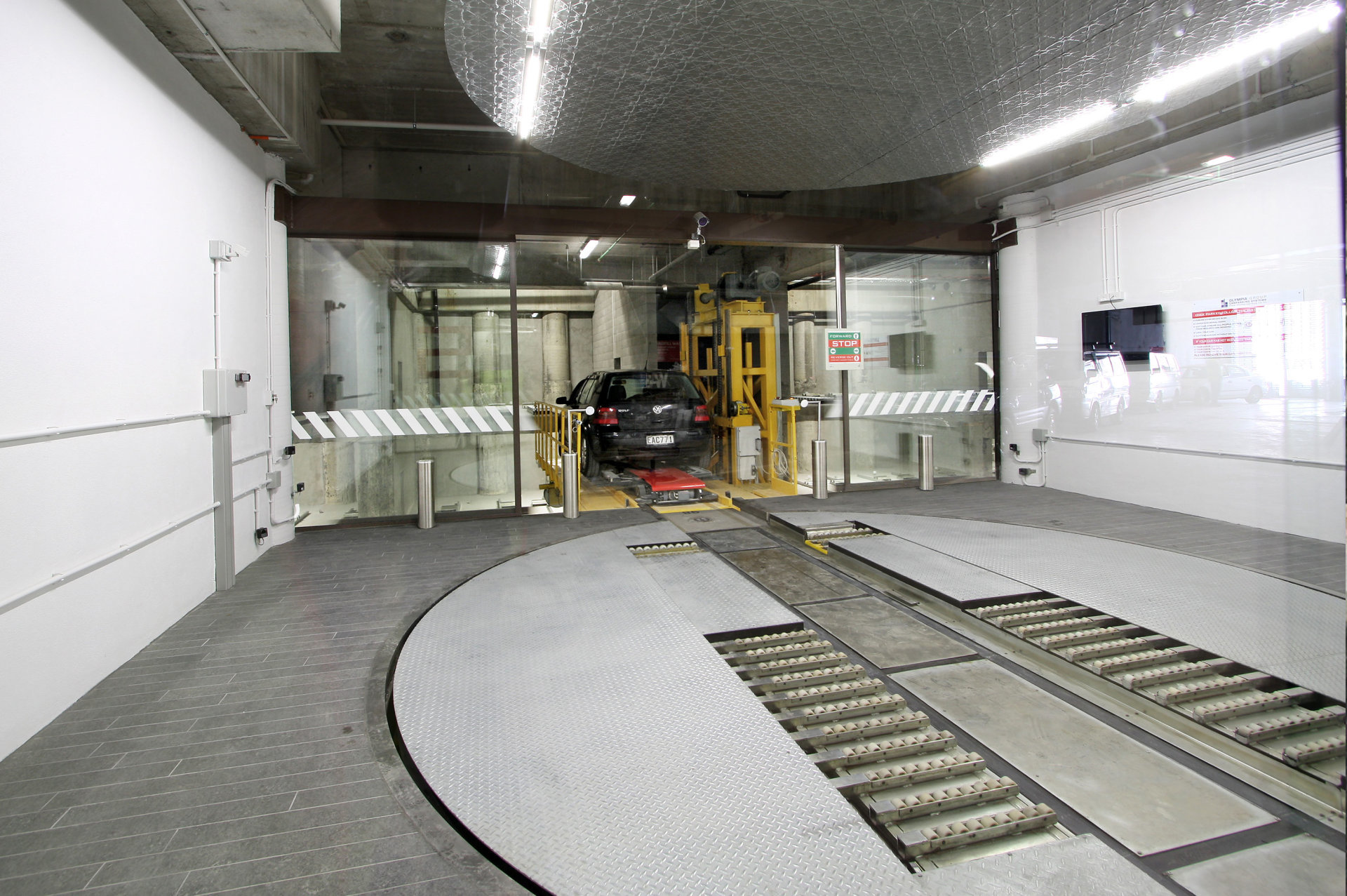

PXD Trans Elevator mechanical parking equipment is mainly composed of steel structure, stacker, car carrier (PARKROBOT), car storage rack, rotating disk (automatic U-turn), entrance and exit system, detection device, safety device, intelligent frequency conversion control System, monitoring and parking charge management system.
How Does It Work

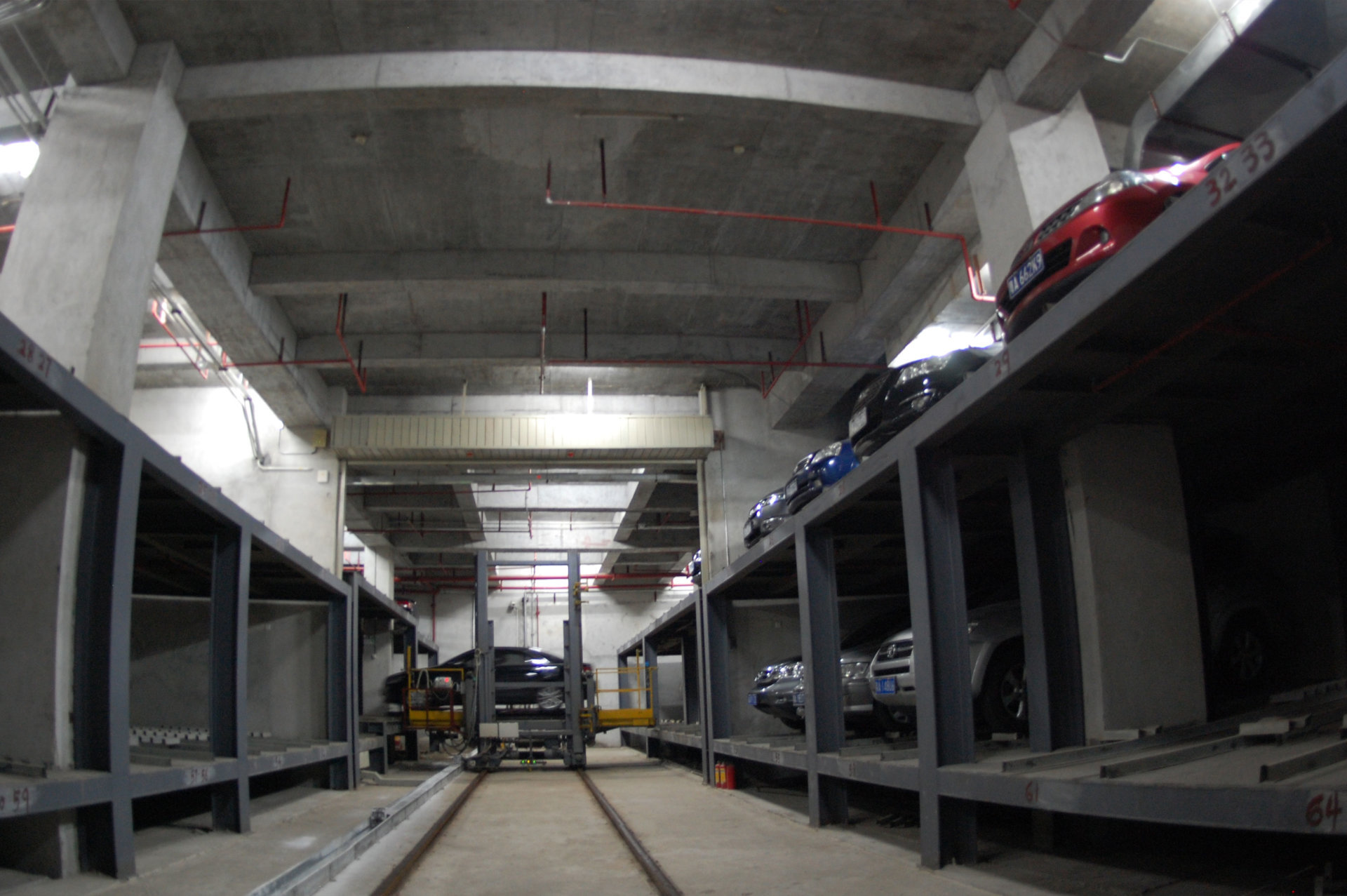

When storing the car, the car is parked on the platform at the entrance of the mechanical parking lot. The detection device at the entrance can detect the vehicle's length, width, height and other data to park the vehicle on parking levels of different heights. The comb-tooth parking robot moves under the vehicle and uses the comb-tooth misalignment and cross movement to extract the car to the carrier. It moves under the vehicle and moves it to a stacker, which then parks the car in a specific parking space through the aisle stacker.
When picking up the car, the user swipes a card at the entrance or exit of the parking lot or makes an appointment through the APP, and the system sends instructions to the parking robot. After receiving the instruction, the parking robot moves to the position of the storage rack, and uses a comb-tooth misalignment and crossover action to extract the car from the storage rack to the carrier. Then through a series of actions, the car is moved to the roadway stacker, and finally the vehicle is transported to the entrance and exit of the parking lot and the head of the car is turned to the direction of exit, which is convenient for users to pick up the car.

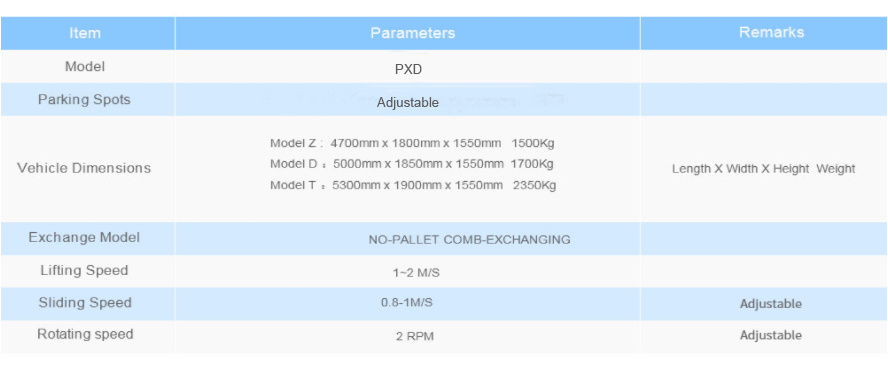

Parameters
Project Case
|
|
|
|

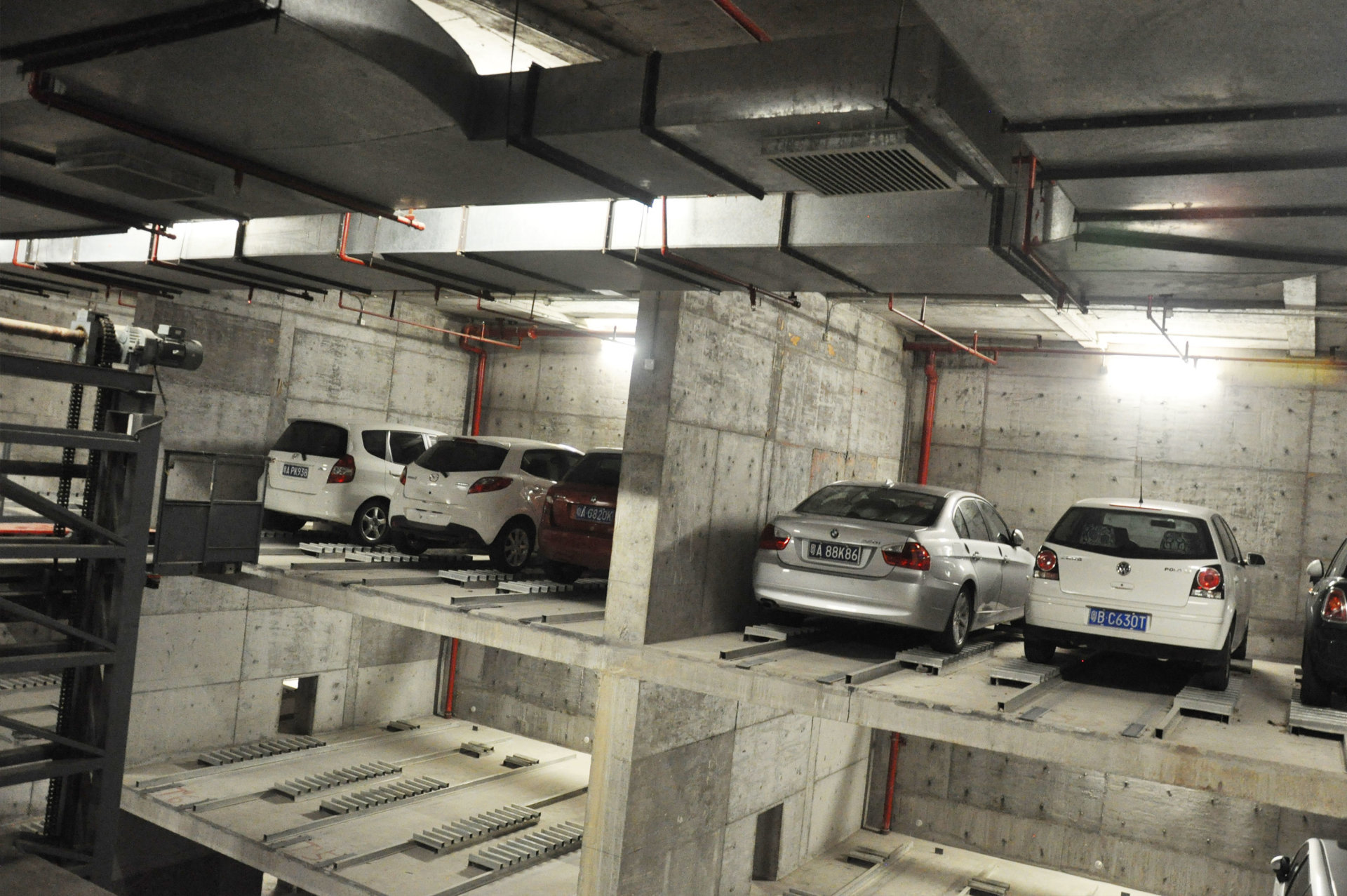

Trans Elevator Mechanical Garage of Shandong Maternal and Child Health Hospital |
|
|
|
|
|
|
Guangzhou Peace World Apartment Trans Elevator Mechanical Garage |
