I. Brief introduction of the Chengdu mechanical garage project-PetroChina:
Project Name: Chengdu PetroChina mechanical garage
Project address: No. 216, Section 1, Huayang Avenue, Chengdu
Equipment type: PSH Pit 3 Level Puzzle Parking Mechanical Garage (negative one, positive two)
Construction time: 2008

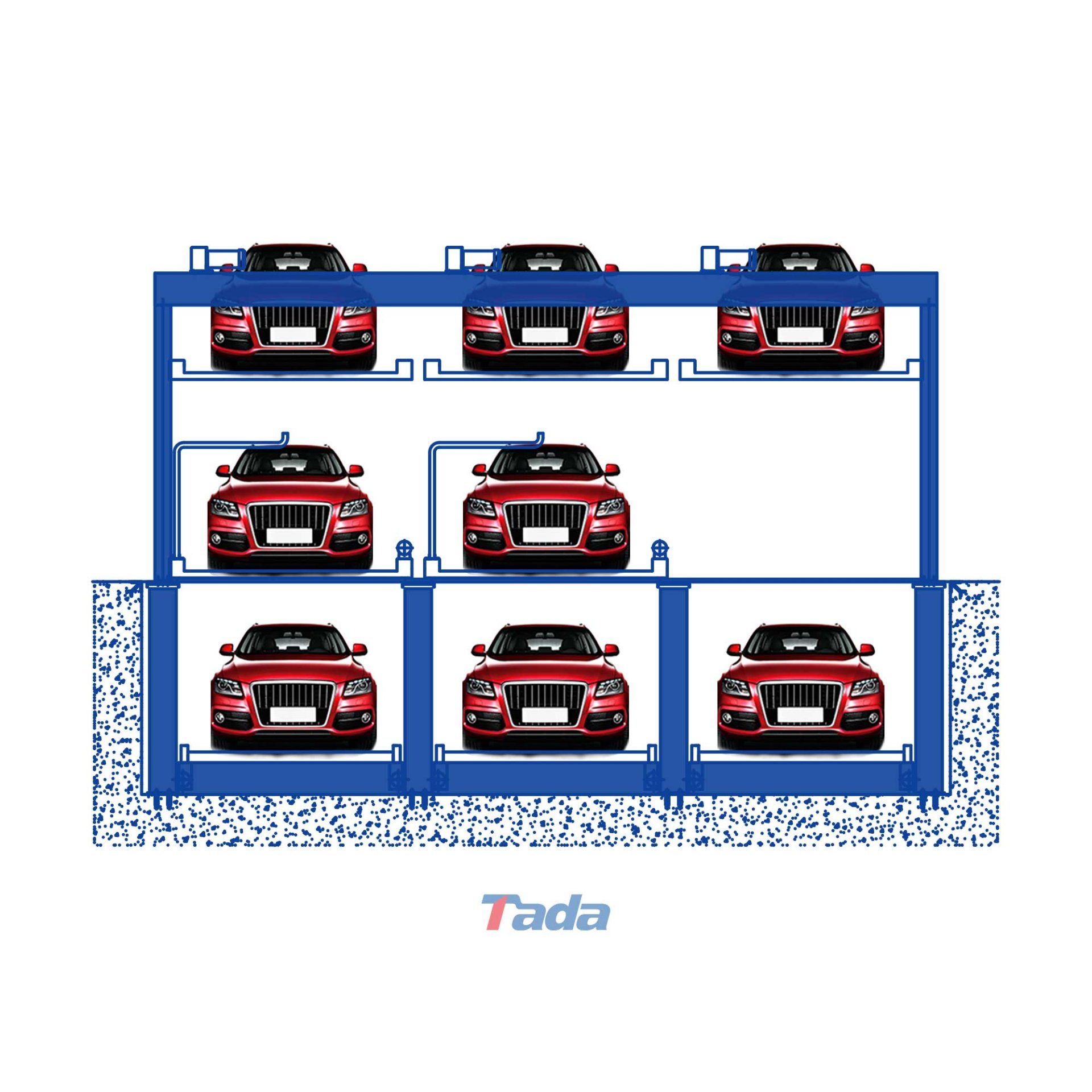

II. Schematic diagram of PSH Pit three-level Puzzle Parking Equipment
III. Operation principle of PSH (negative one positive two) Pit three-level puzzle parking mechanical garage
The PSH pit 3-level puzzle parking mechanical garage is suitable for increasing parking spaces in new and old communities. Its operation principle is like the Rubik's cube, and the intelligent device for realizing mechanical storage of the car is realized through the lifting and lateral movement of the car board. The top and bottom pit car boards are only used for lifting, and the ground car boards are only used for lateral movement.
When storing a car, the user drives the car to a parking facility with a free parking space, selects the target mechanical parking space and enters a password or swipes the card. The car board of the target parking space is moved to the ground by the lifting system, and the safety door is automatically raised (if any). The user drives the car into the car board of the mechanical garage by reversing. The reason for reversing and storing is based on international conventions for parking safety considerations. After the user parks the vehicle properly, he swipes the card again before leaving the car board and going to the control panel. At this time, the safety door is lowered automatically (if any). The parking system will automatically store the vehicle to the target parking space, and the entire storage process ends. The parking space on the ground floor of this type of mechanical parking equipment can be reversed into the mechanical garage after swiping a card.
The demonstration of Pit Parking Mechanical Garage Project(negative two positive two)
When picking up the car, the user swipes the card or enters the password, the target parking space is moved to the ground through the upgrade system, and the security door is automatically raised (if any). The user drives the vehicle out of the three-dimensional garage and swipes the card here, the security door automatically lowers, and the entire process of taking the car is over.
IV. Features and scope of application of PSH(negative one positive two) three-level puzzle parking mechanical garage
The pit mechanical parking equipment combining ground and underground is adopted in Chengdu CNPC mechanical garage, which not only improves the space utilization rate, but also increases the parking space. This kind of mechanical parking equipment mainly adopts the chain lifting mode. It is generally designed with three-storey (one floor in the pit and two floors above the ground), and can be designed with up to eight floors (three floors underground and five floors above the ground). The entrance and exit is on the first floor on the ground, which adopts the large span design. It is very suitable for building in the green square, residential building and office building basement. Compared with the same type of equipment, it makes full use of the underground part, which is a kind of equipment with high space utilization rate.
V.About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
