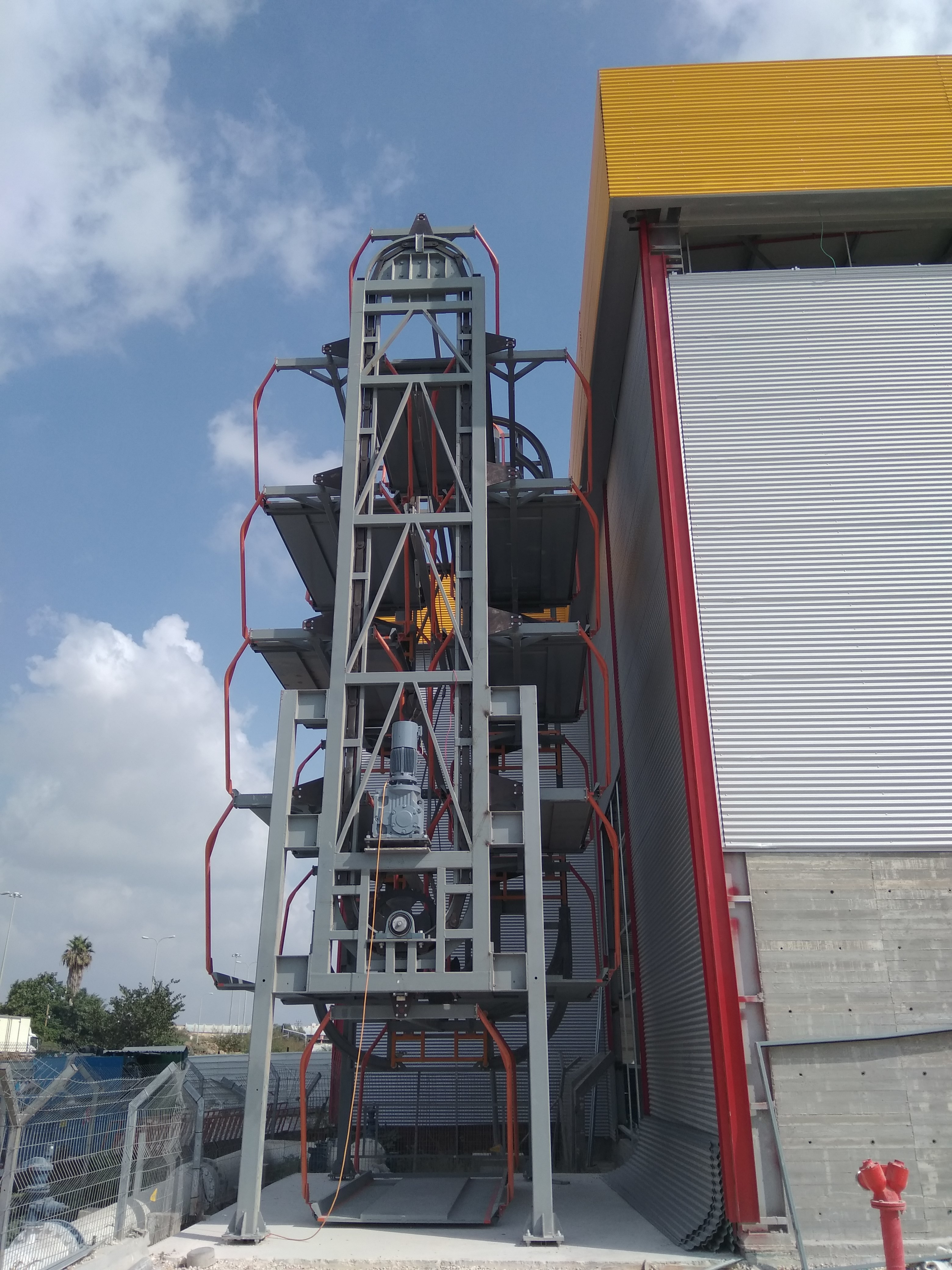

16 VEHICLES VERTICAL ROTARY CAROUSEL PARKING SYSTEM
Features
- German brand motor with strong power drive: fewer fault points and low failure rate.
- High equipment manufacturing accuracy, low noise, and no disturbance to the public.
- Variable frequency speed regulation, safe and economical: energy-saving of over 20%, stable operation.
- Short construction period: Each group of equipment only needs 7 days of construction time (excluding civil foundation), because of the adoption of the building block design concept.
- High land use efficiency, it parks up to either 16 SUV-sized vehicles in the space of only 2 cars (36m2)
Composition
16 cars rotary carousel PCX Model parking system consists of a steel structure frame, chain, a hanging vehicle pallet, a drive system, a control system, and a safety and detection system.
How Does It Work
Parameters
| Model | PCX Model 9 Layers (SUV) |
| Parking space | 16 |
| Vehicle Length | ≤5300 mm |
| Vehicle Width | ≤1900 mm |
| Vehicle Height | ≤1950 mm |
| Driven Model | Motor + Chain |
| Motor Power | 22KW |
| Max Pick-up time | 175s |
| Power Supply | Motive power / 3 phase 5 line |
| Operation Mechod | Touch Screen / button / swipe card |
| Safety Equipment | Photoelectric switch |

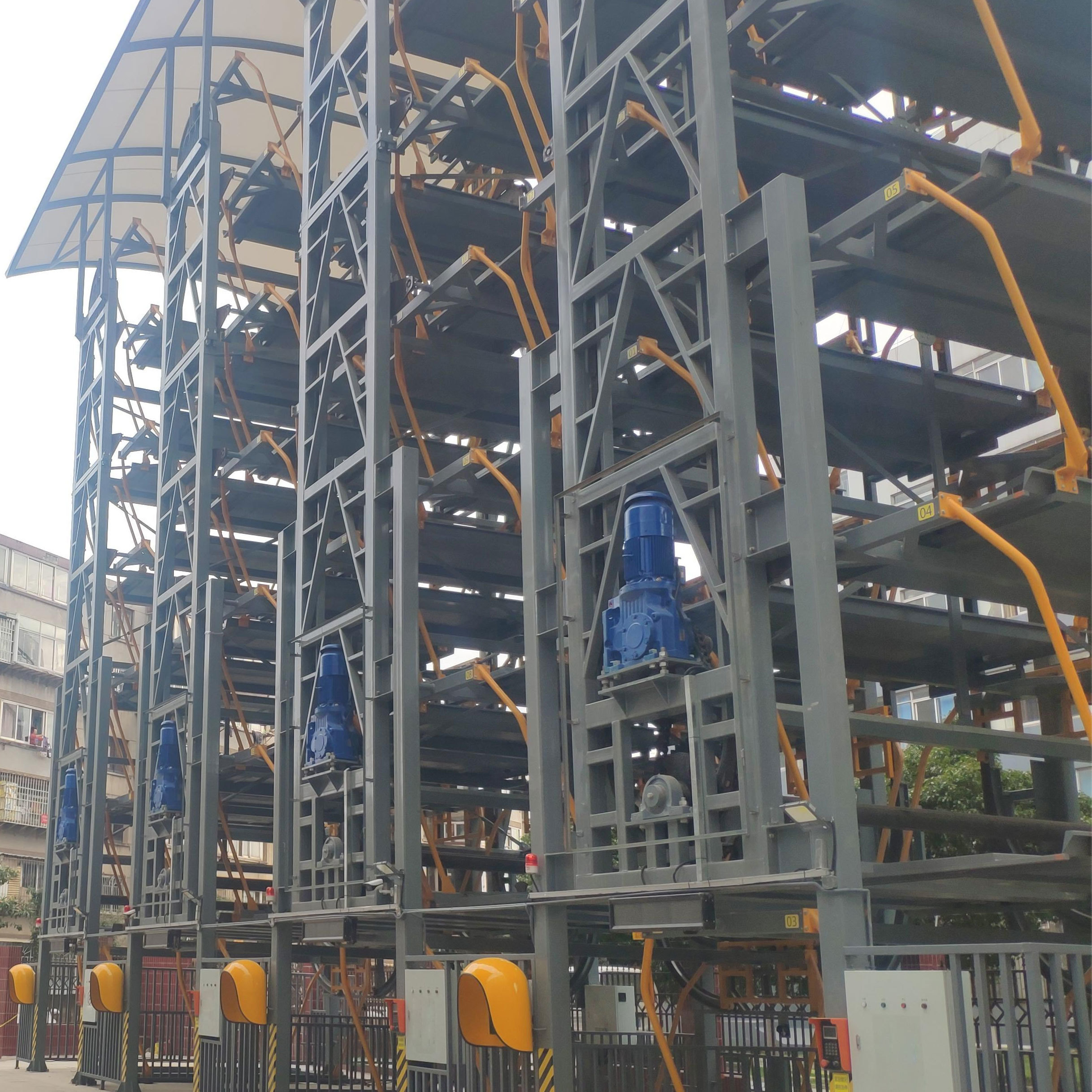

Project Case
Why Choose Us
About Us
Founded in 2001, and with a registered capital of USD 30 million, Shandong Tada Auto Parking Co., Ltd. has a Swiss R & D center and is a set of R & D, design, manufacturing, and engineering installations that rely on the two major steel giants, Shan Steel Group and Shagang Group. And after-sales service and one of the specialized automated parking system manufacturers.
