PJS Model 4-column 3-story 3 Cars Triple Stack Parking Lift-Automated Parking System Manufacturers

1

PJS Model 4-column 3-story 3 Cars Triple Stack Parking Lift

PJS4-column 3-tier simple lifting type parking garage_Home parking garage

Equipment Features

PJS Model triple stacker parking lift, also known as home parking garages, with the category code PJS, is a mechanical parking equipment that uses car lifting plates to increase the number of parking spaces. This type of parking equipment has a simple and compact structure, button control, and simple and quick operation. According to the drive method, it can be divided into two types: motor drive and hydraulic drive. This equipment is suitable for construction in outdoor squares, basements, small villas, etc., and is mostly used in private residences, enterprises, institutions, and real estate.

Equipment Composition

The PJS simple lifting type parking garage is mainly composed of a steel structure, car lifting plate, lifting system, transmission part, electrical system, safety device, hydraulic drive system, or motor drive system.

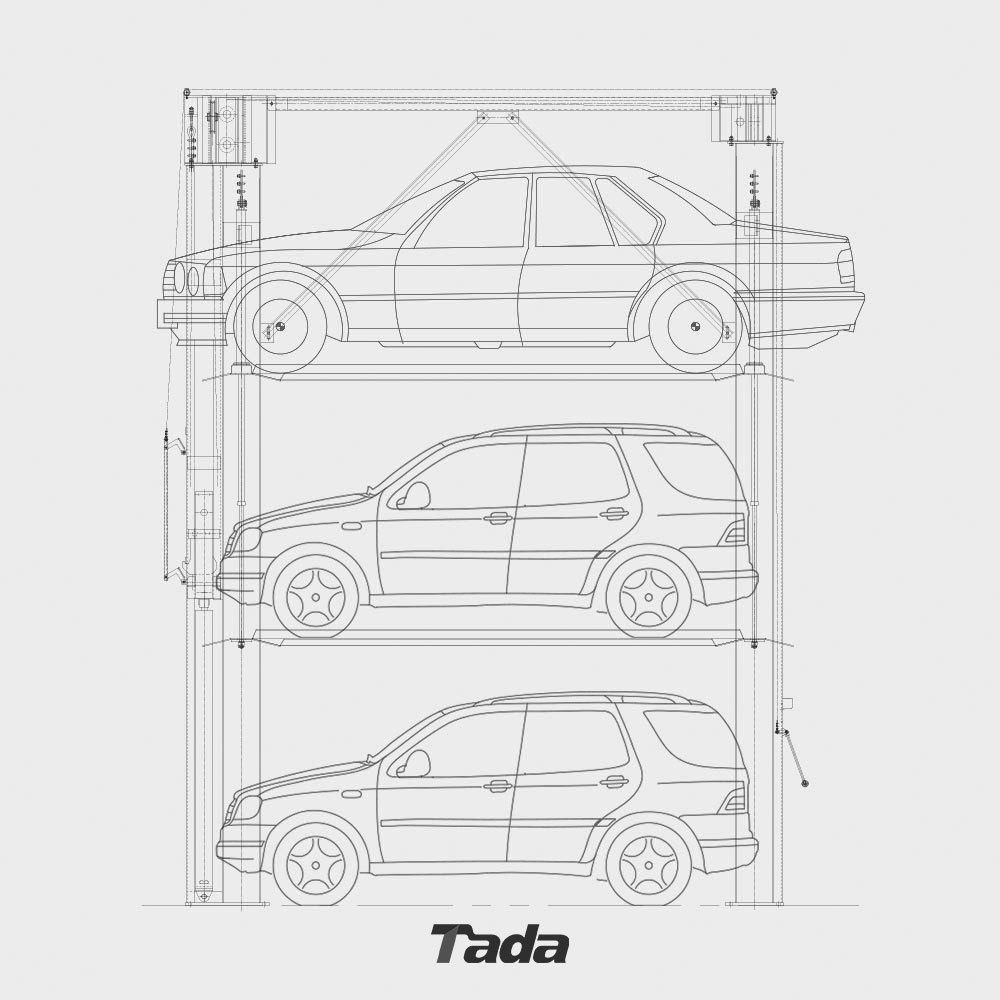

PJS4-column 3-tier simple lifting type parking garage_Home parking garage size diagram, American parking garage

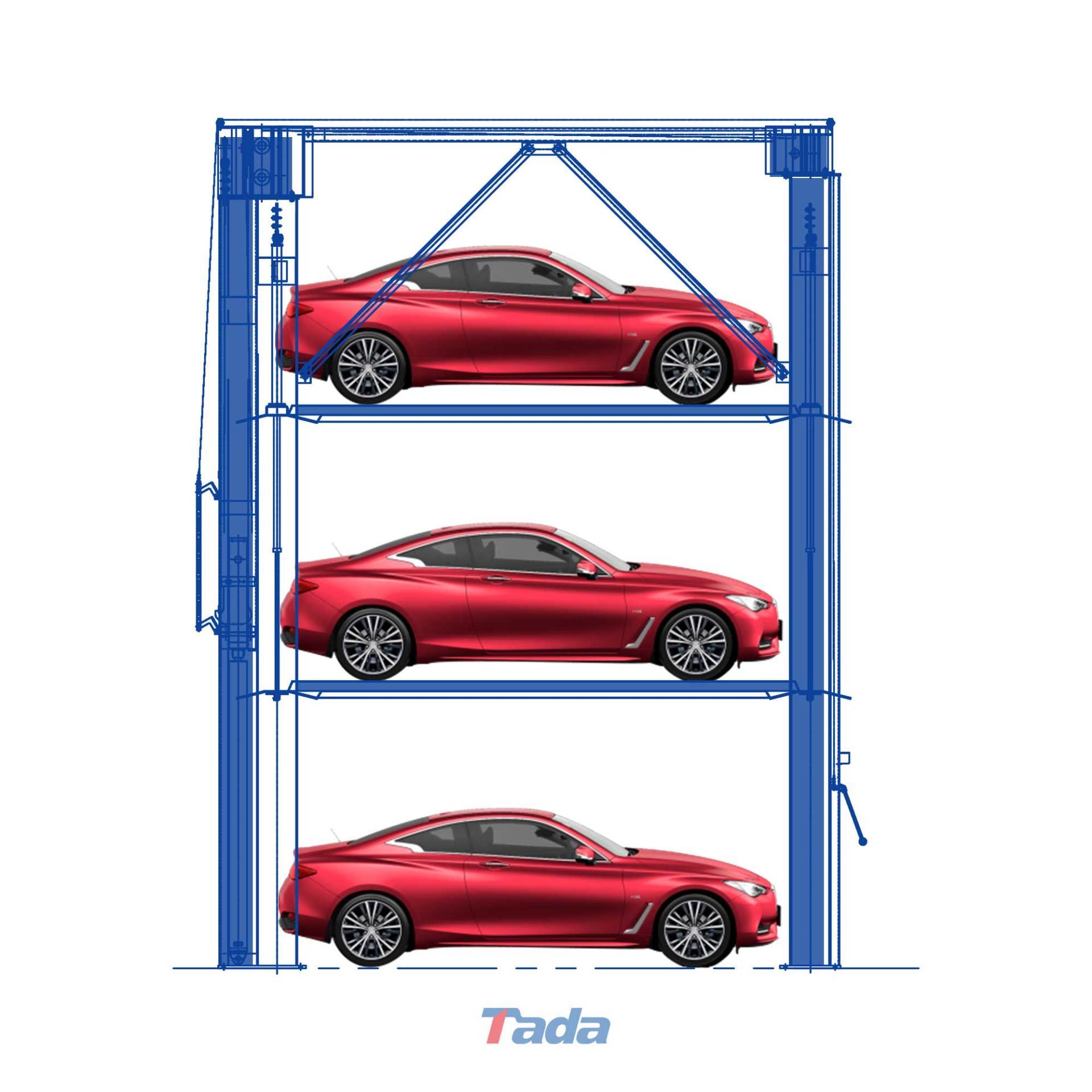

PJS simple lifting type triple car stacker diagram

Equipment Principle

PJS Model 3 cars stack parking lift operating principle parking garage video

Equipment Parameters

Item	Parameter	Remarks
Model	PJS
Number of parking spaces	Designed according to needs
Parking parameters	Z-type vehicle: 4700MM X 1800MM X 1550MM 1500KG D-type vehicle: 5000MM X 1850MM X 1550MM 1700KG T-type vehicle: 5300MM X 1900MM X 1550MM 2350KG	Length X Width X Height Weight
Drive method	Hydraulic drive or motor + chain or motor + steel wire rope
Lifting speed	4-6M/S
Power supply	Three-phase five-wire system 380V or single-phase 220V	Set according to needs
Operation method	Button, manual	Set according to needs

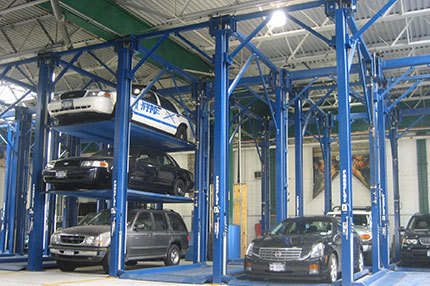

Case display

Our Advantages

PJS4-column 3-tier simple lifting type parking garage_Home parking garage

About Us

Shandong Tada Auto Parking Co., Ltd. was founded in 2001 with a registered capital of 200 million RMB. It has a Swiss R&D center and is a professional manufacturer of multi-story parking garages, integrating R&D design, manufacturing, engineering installation, and after-sales service, relying on the two major steel giants, Shandong Iron and Steel and Shagang.

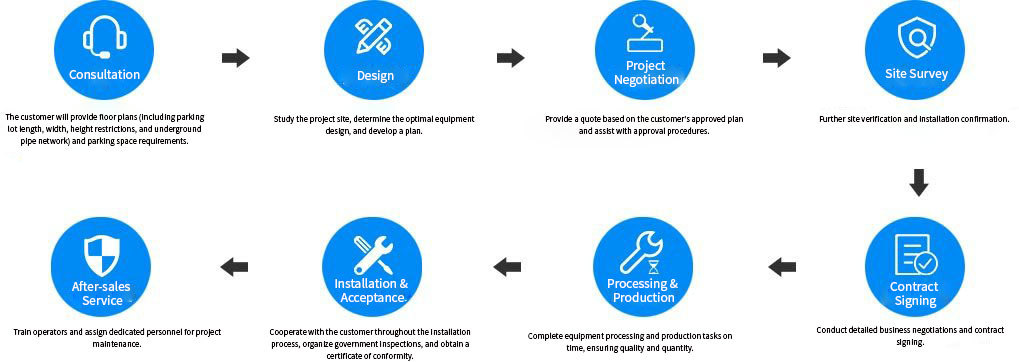

Cooperation Process

PJS4-column 3-tier simple lifting type parking garage_Home parking garage_Parking garage cooperation process and how to purchase an American parking garage

Contact U

Phone：+86-53175879988 E-Mail：sales@tadaparking.com.cn
WhatsApp/Phone: +8618863491368

Related Downloads

Dimensions and parameters of an export-oriented PJS4-column, 3-tier simple lifting type automated parking system
