PSH Double Layer Pit Puzzle Parking System

Sunken pit two-layer lifting and shifting three-dimensional parking garage

Equipment Features

Lifting and shifting type puzzle parking garage. It is currently the most widely used puzzleparking solution on the market, and it is also one of the puzzleparking garage types with the highest market share in China.

The PSH sunken pit two-layer lifting and shifting puzzle parking garage uses a motor-driven chain lifting method, which can fully utilize the space below the ground to build a two-layer mechanical parking garage. It can be built outdoors or in a basement. The entrance and exit are on the ground floor, which is very suitable for the parking needs of old residential communities, residential buildings, and villa basements with insufficient basement height. Compared with similar equipment, it makes full use of the underground part and has a relatively high space utilization rate.

The PSH sunken pit two-layer lifting and shifting parking equipment adopts a parking solution that uses the lifting or shifting of the vehicle carrier plate to achieve vehicle access. Its scale can be large or small, and it can be arbitrarily combined and arranged according to different terrains and spaces. It has a high space utilization rate, reliable equipment safety, fast vehicle access, and simple use and maintenance. Therefore, it is a multi-layer puzzle parking solution with a small footprint and low construction cost.

The PSH sunken pit two-layer lifting and shifting puzzleparking garage can build 5 mechanical puzzleparking spaces in the space of 3 plane parking spaces, which is a puzzleparking solution suitable for the renovation of old communities.

Schematic diagram and dimension drawing of the sunken pit type PSH two-layer lifting and shifting three-dimensional parking garage

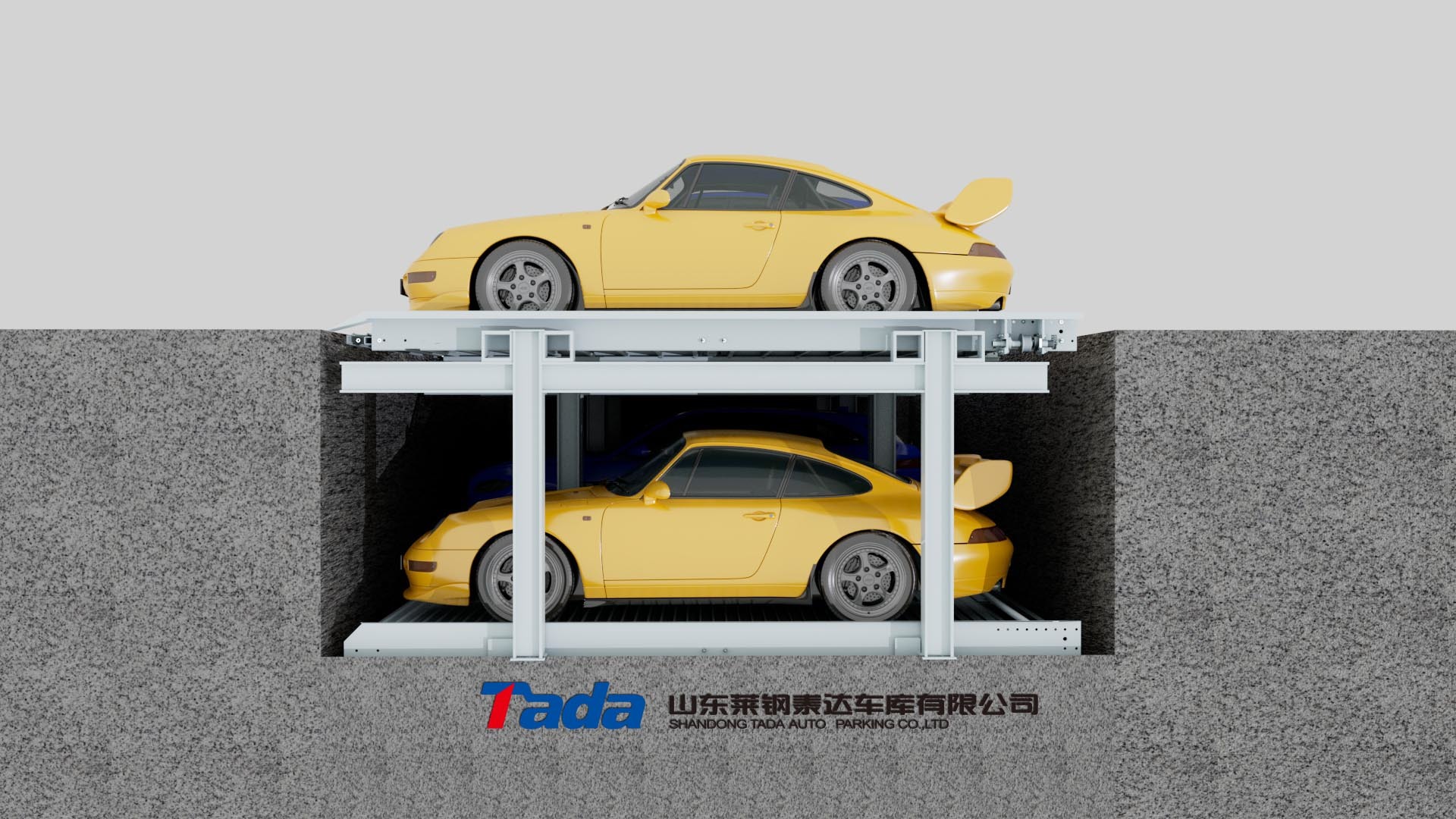

Schematic diagram of PSH sunken pit, two-layer lifting and shifting puzzle parking garage

Equipment Composition

The PSH sunken pit two-layer lifting and shifting puzzle parking garage is mainly composed of steel structure parts, vehicle carrier plates, lifting system, shifting system, transmission part, safety protection system, and PLC fully automatic control system.

Parking Equipment Operating Principle

The PSH sunken pit two-layer lifting and shifting puzzle parking garage is suitable for increasing parking spaces in newly built communities and the renovation of old communities. Its operating principle is like a Rubik's Cube, using the lifting and shifting of the vehicle carrier plate to achieve intelligent parking of automobiles. The vehicle carrier plate in the sunken pit layer is only used for lifting, and the vehicle carrier plate on the ground floor is only used for shifting.

When parking, the user drives the car to the parking equipment with an empty parking space, selects the target mechanical parking space, and enters the password or swipes the card. The vehicle carrier plate of the target parking space in the sunken pit moves to the ground through the lifting system. The user drives the car into the vehicle carrier plate of the puzzleparking garage in reverse. The reason for reversing into the garage is based on international parking safety considerations. The ground floor parking spaces of this type of puzzleparking equipment can be directly reversed into the puzzleparking garage.

When retrieving the car, the user swipes the card or enters the password, and the target parking space in the sunken pit moves to the ground through the upgrade system. The user drives the vehicle out of the puzzle parking garage, and the entire vehicle retrieval process is complete.

Equipment Parameters

Item	Parameter	Remarks
Model	PSH
Number of parking spaces	Designed according to needs
Parking parameters	Z-type vehicle: 4700MM X 1800MM X 1550MM 1500KG D-type vehicle: 5000MM X 1850MM X 1550MM 1700KG T-type vehicle: 5300MM X 1900MM X 1550MM 2350KG	Length X Width X Height Weight
Drive mode	Motor + steel wire rope or motor + chain
Lifting speed	4-6M/S
Shifting speed	8M/S	Set according to needs
Operation method	Button, ID card, automatic, manual	Set according to needs
